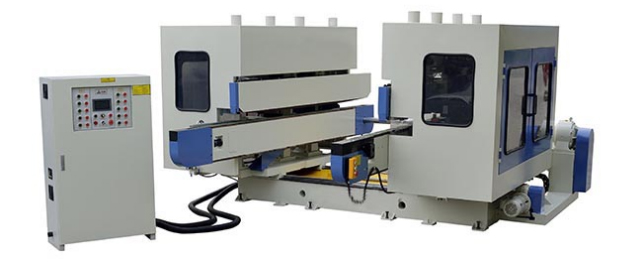

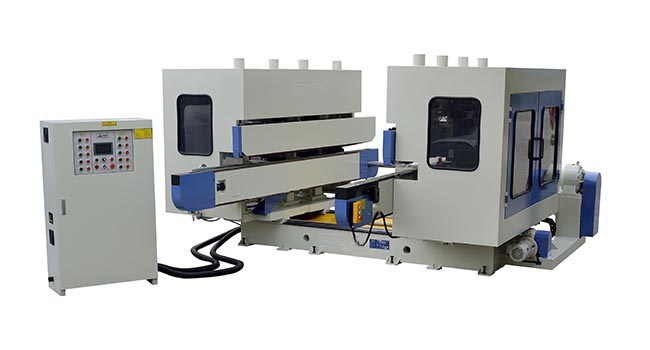

45/60 degree double end tenoner
Device descriptionThis automatic machine is mainly applicable to the continuous production of solid wood floor,laminate floor and engineered floor, advanced design, simple structure, easy operation, intensive automation .
This kind machine can do a special angle floor of 45 °, 60 °, or a routine 90 ° floor.
The device adopt a high precision double-chain track to synchronize continuous feed method. When manual loading in the front end floor stock bin, the floor is transported to each of the tools by the conveying chain at a set angle.

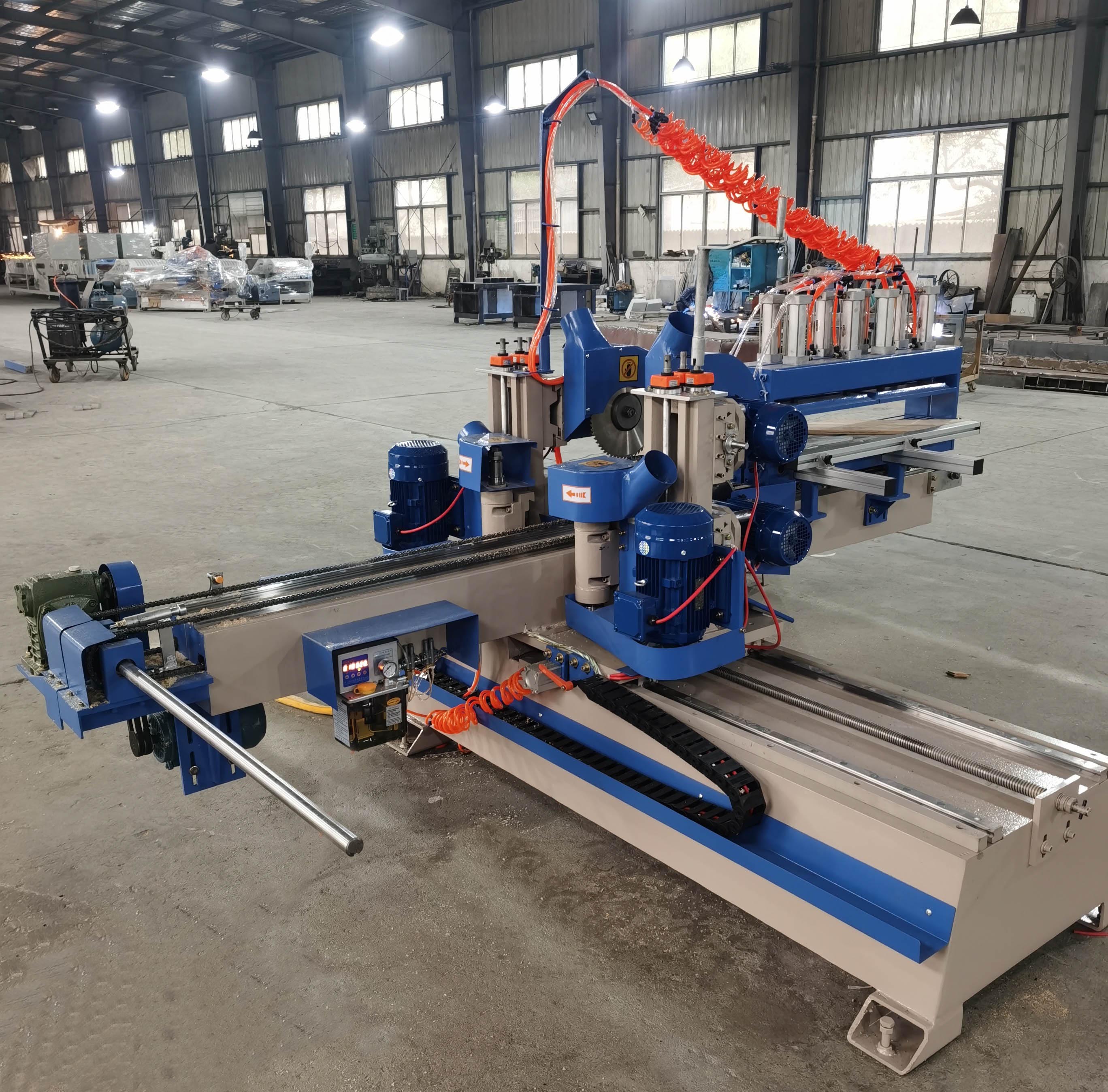

45/90 degree semi-automatic double end tenoner

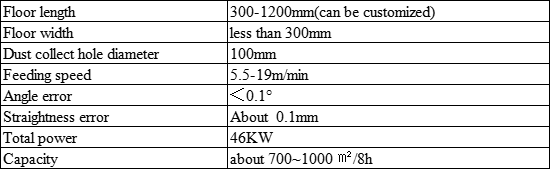

Equipment technical parameters
Device description
This automatic machine is mainly applicable to the continuous production of solid wood floor,laminate floor and engineered floor,simple structure, easy operation.
This kind machine can do a special angle floor of 30 °, 45 °, and 60 °, or a routine 90 ° floor.
Each time the device can process 3 ~ 4 floors at the same time, using a Inverter motor, the feed speed is adjustable, run along the linear guide, high precision, and automatically return to the origin after processing is completed.

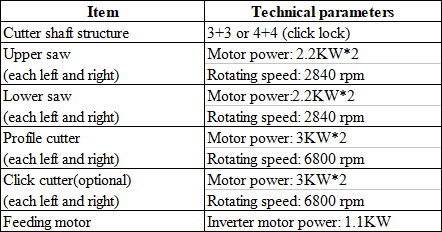

Equipment technical parameters

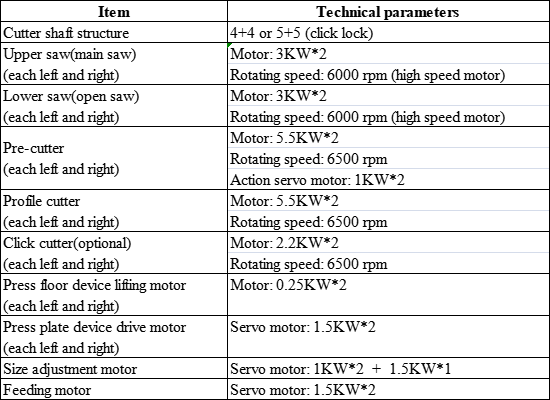

Motor information
