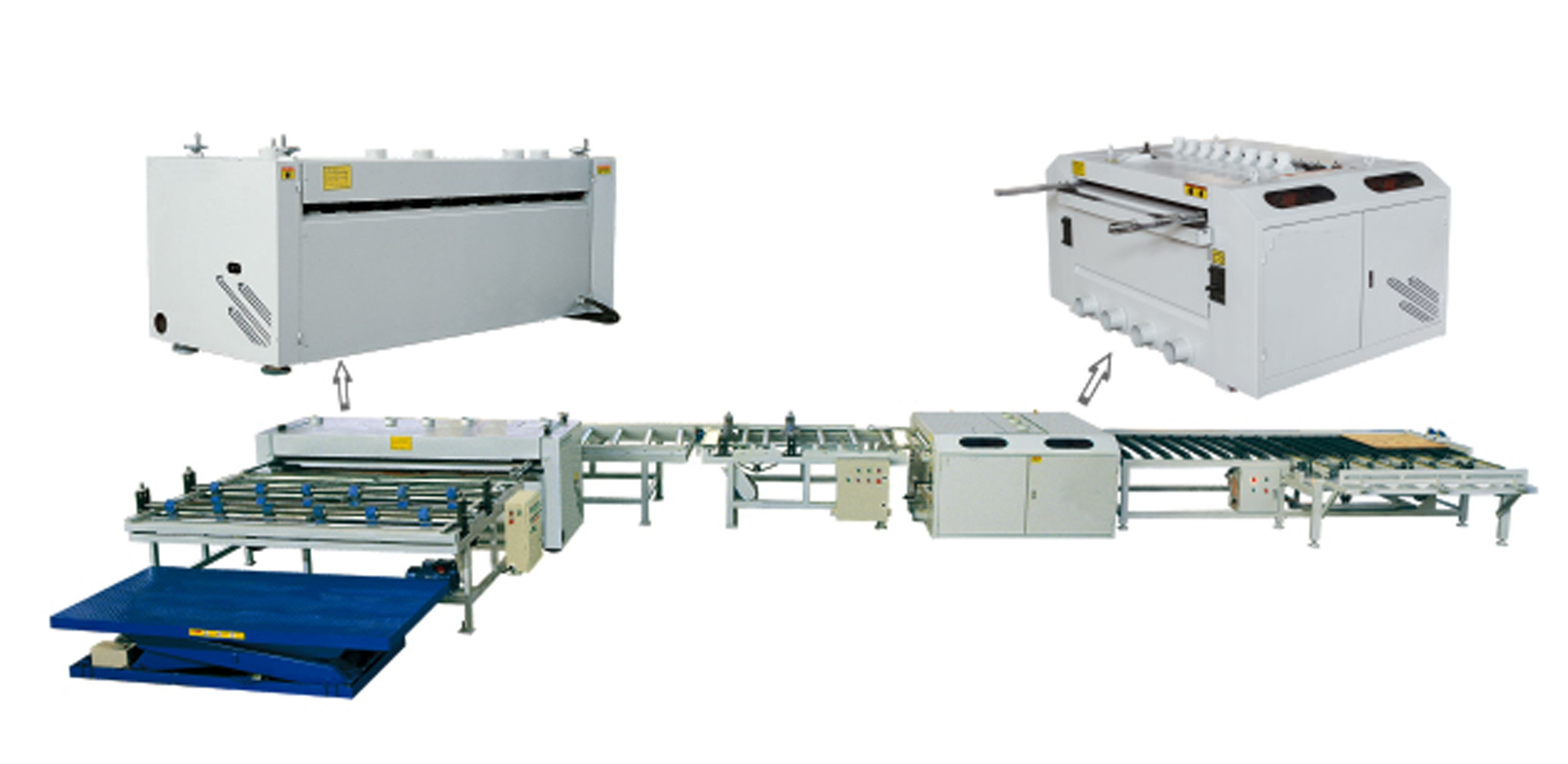

Cutting machine to cut board into some several small boards.First cut a big board into two pieces by transverse saw, and then through steering roller conveyor feed into left or right or both sides multi rip saw to cut into required specifications small boards.
The cutting line easy to operation and safe reliability. High efficiency, high precision and low noise.
It can work with loading and unloading system to finish automatic feed in and feed out,and can be connected to the DET machine when the panel specification allows.
Product equipment list
Equipment information

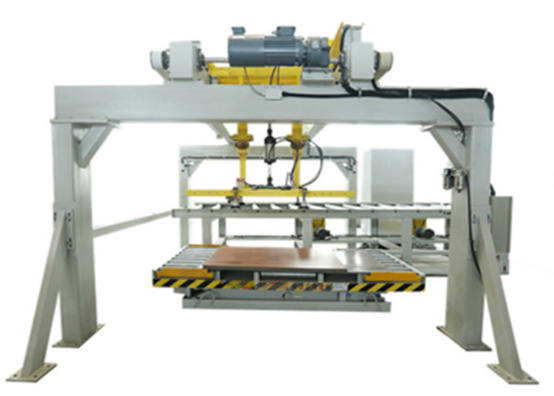

Automatic loading system
The automatic loading system include the hydraulic lifting platform ,automatic loading machine and pull plate positioning machine.
Function:The loading machine use suction cups to suck the big board that on the hydraulic lifting platform to the pull plate positioning machine,conveyor to the transverse three pieces saw.
Parameters:
Length：3700mm
Width：3500mm
Speed：adjustable，5-8 pcs/min
Motor power：1.5KW
The above parameters are based on 1220*2440mm board, the specific parameters depend on the actual board size of the customer.
Transverse saw (Three pieces saw)
Function:Cut the big board into two small pieces or three small pieces . Customers can choose the model reasonable according to different specifications and different materials,or can be customization.

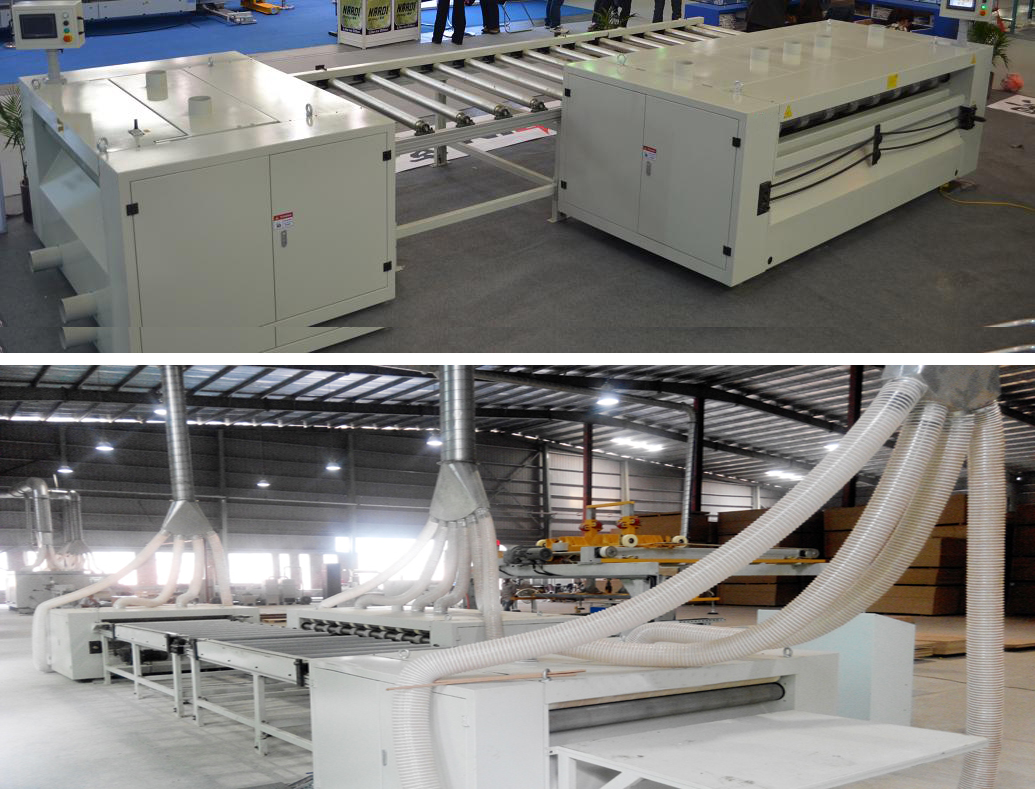

Longitudinal multi rip saw
Function：Through one spindle install many pieces saw blade to cut board which you need width.
Parameters：
Automatic stacking system
The automatic stacking system includes palletizing machine and automatic stacking machine.
Function:Collect the sawn board according to the specified number ,and automatic stacking them neatly for easy transport to the next process.
1. Collected board width:125-300 mm
2. Collected board height:50~150mm
3. Speed of stacking :5~6 times/min
Motor power:5.5KW+1.5KW
4. Height of working table: 650 mm
The above parameters are just for your reference, can be customized according to customer needs.
Connection between cutting line and DET line
When the board parameters allows,the cutting line can connect to the DET line.
Connection between cutting line and DET line includes steering roller conveyor and board turn over machine.
Function:turn over the sawn board and feed it into the DET line.
