Laminate flooring production line
What machines are required to install a laminate flooring production line?

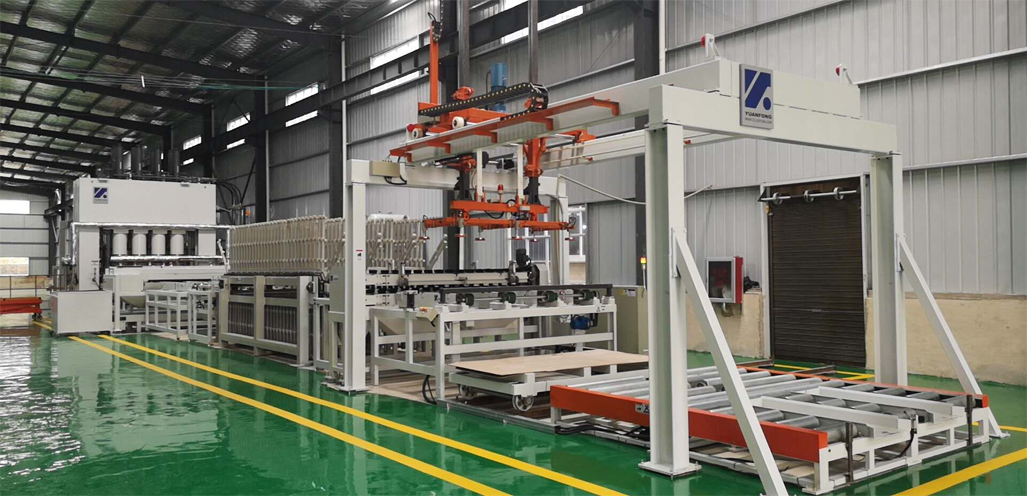

1. Short cycle laminating line
The overlay paper, decorative paper, HDF board and balance paper are pressed together through short cycle press with high pressure,high temperature and short cycle time.
short cycle hot press line for laminate flooring parameters
other sizes also can be customized

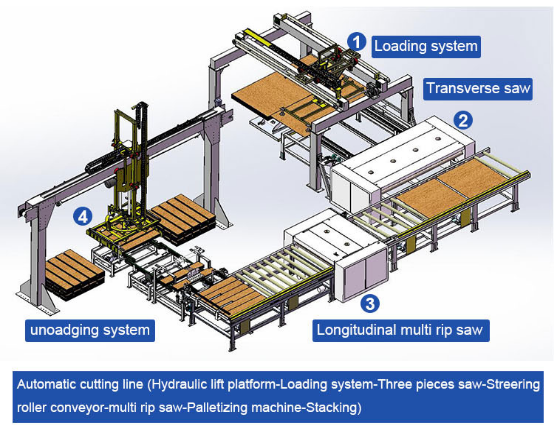

2. Cutting line
This line main function is cut big board into some small boards; it can work with the front and the back of automatic loading and unloading system to finish automatic feed in and feed out.
3. Laminate flooring DET (Double End Tenoner) production line
It is used in the forming processing of the board's long sides and short sides. It can work together with automatic loading system and connect with V groove painting and wax sealing line,automatic packing line in the back. Advanced design, simple structure, easy operation, intensive automation and reliable performance.
There are 5+5 stations and 6+6 stations production lines, each cutter shaft can be rotated to different angles freely.

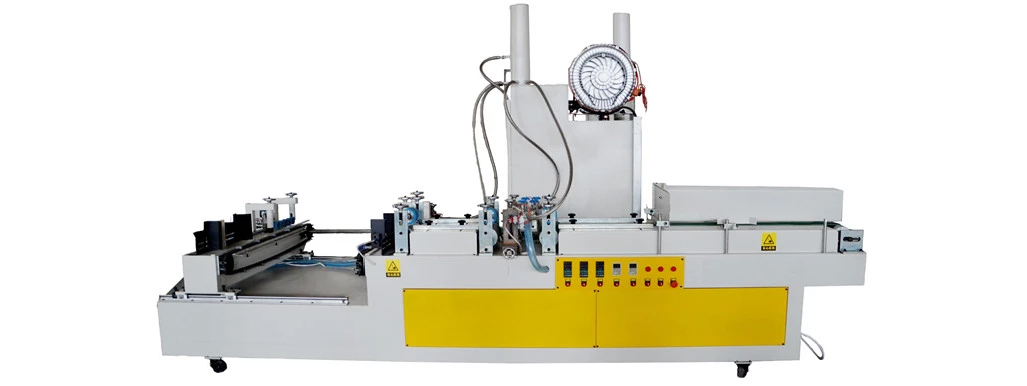

4. V-shape groove painting Line
Used for the floor V-groove, use water-based paint,first short side coating and drying, then long side. The floor with paint improved waterproof properties, which is beneficial to the floor of the joining together.
5. Wax sealing line
Make wax into all grooves of laminate flooring, ensure waterproof and in favor of connecting of flooring.

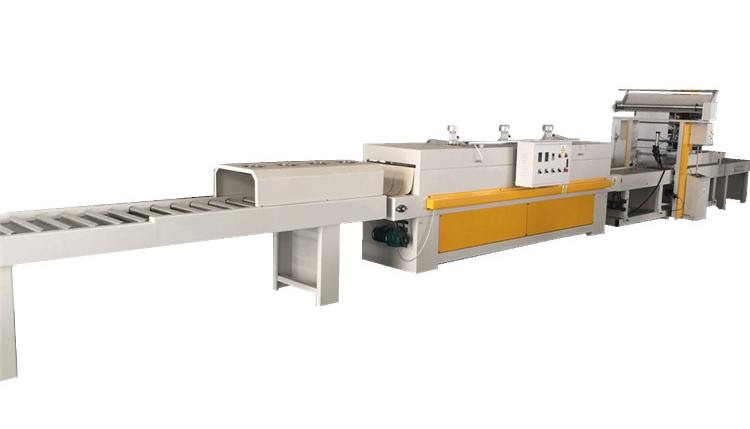

6. Automatic packing line
To realize the function of full automatic film covering and shrinking.The shrinkeg package can naturally cool or be cooled by strong wind, and then, the objects will automatically slide on the slide to floor stacking area.There is also a fully automatic line, which automatically packs the board in a dust-free box, and heat shrinks (optional).

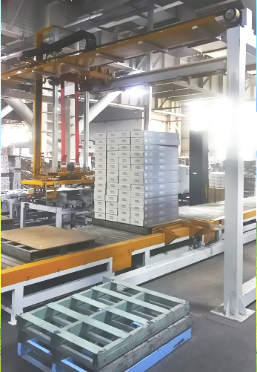

7. Stacking line
To complete automatic wrapping of packed final finished products in stacking area for stacking so as to ensure convenient transportation.
8. Dust extraction system
It is used for collecting and handling all kinds of dust from double end tenoner and multi rip saw machine.
How to build a laminate flooring production line?
1. Workshop
Usually,a complete flooring production line includes 3-4 short cycle lamination lines and a rest of flooring line. An automatic lamination line covers 320 m2(length:40 meters,width:8 meters), 1,200 m2 (length:60 meters,width:20 meters) for flooring processes. So totally 2,500 m2 space is required for machinery equipment.
2. Warehouse
Meanwhile,2,000 m2 warehouse is needed for raw boards,melamine paper,laminated boards,finished flooring,etc.
3. Operating workers
To operate the whole production line with 3 shifts,60-70 workers are needed.
4. Production capacity
Full automatic flooring line has a production capacity 5,500 m2 per shift (8 hours).
Why choose SUM as your supplier?
1. Professional design
Our engineers team will draw the layout according to customer’s factory space and production requirements. Each equipment location,passage will be designed reasonably to meet safety production.
2. Advanced equipment
SUM has specialized in flooring production line for more than decade years. All the devices are produced with great care to make sure perfectly running in customer’s factory.
3. Humanized after-service
SUM provides quality guarantee,all the faulty parts will be recalled without any cost. Professional engineers will be sent to customer’s factory to help stall the production line until it runs well. Provide technical support within 1 hour to ensure that customers can solve problems in short time.
